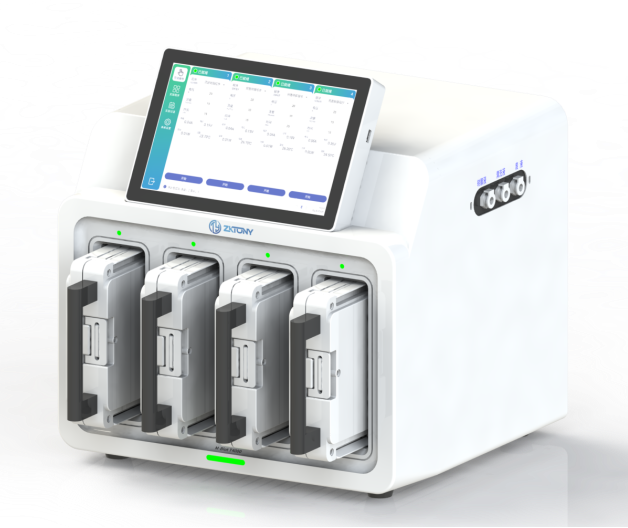

M-Blot™ T4000 Multi-function Rapid Transfer Device

$3,999.00

SKU: W1605
Enter the quantity you would like, or drag the panel to find the quantity and price that best for you
Bulk QuoteAuthorize OEM & ODM

Product details

The M-Blot™ T4000 rapid transfer instrument combines the stability, efficiency, uniformity, and speed of traditional wet and semi-dry transfer methods. It enables protein transfer in just 15 minutes.

Equipped with a proprietary transfer kit—including rapid transfer solution, membrane balance solution, and specialized sponges—it ensures consistent and high-quality results. The instrument supports three modes, four independent channels, and up to eight simultaneous transfers, making it ideal for high-throughput workflows.

Application

Fast and efficient WB transfer equipment.

Advantage

  • Rapid Transfer: Completes the transfer process in just 10–15 minutes. Fresh buffer is continuously replenished throughout, ensuring a new buffer every second while maintaining a stable temperature through cooling.
  • High Throughput:Supports simultaneous transfer of up to 8 gels.
  • Exceptional Stability:It offers three transfer modes—constant pressure, cross flow, and constant power—with high reproducibility.
  • User-Friendly Operation:Features a full-touch screen interface, simple sandwich assembly, and one-click program initiation for ease of use.
  • Comprehensive Experiment Logging: Automatically records real-time data, including voltage, current, temperature, and power. Generates curves and detailed experimental reports for analysis.

Specifications

Product nameM-Blot™ T4000 Multi-function Rapid Transfer Device
Gel compatibilityMini glue、midi glue , thickness 0.75mm、1mm、1.5mm;Tris-Glycine、Bis-Tris、Tris-acetic acid、Tris-Tricine
Reaction module4
Working conditionsConstant voltage, continuous current, constant power
Single channel voltage output0~50V, accuracy within ±0.2V
Single channel current output0~2A, accuracy within ±0.1A
Single channel power output0~100W, accuracy within ±5W
Experimental time0-999min adjustable
Traffic control0~150mL/min
Temperature displaySupport
Touch screen10-inch color LCD touch screen
Operating systemAndroid 10.0
Pipe materialSilicone tube
External data interfaceUSB2.0×1
Input voltage100-240V(AC)50~60Hz
Machine Power 800W
Working ambient temperature0~30℃
Working ambient humidity0~65%
Storage and transportation ambient temperature-20℃~50℃
torage and transportation environment humidity0~85%
Noise≤65dB
Weight28kg
Dimensions (L*W*H)400mm×355mm×420mm
